特性: - 非自動對心型。
- 夾鉗式適用於小密度的輪轂。
- 在一系列中使用數個夾鉗式會使增加扭力。
- 請至網站上參閱我們的安裝說明。
- GSC 本體：AISI 1045合金鋼材質。 |
| unit:mm |
| 產品編號 | 傳達扭矩T (N.m) | 軸向推力F (KN) | 輪毂面壓力P (N/m㎡) | 重量kg |
| GSC-06 | 2 | 0.8 | 115 | 1.1 |
| GSC-08 | 5 | 1.2 | 120 | 1.5 |
| GSC-10 | 10 | 2 | 120 | 1.9 |
| GSC-11 | 10 | 2 | 120 | 2.0 |
| GSC-12 | 11 | 2 | 115 | 2.2 |
| GSC-13 | 13 | 2 | 110 | 2.3 |
| GSC-14 | 22 | 3 | 90 | 4.9 |
| GSC-15 | 25 | 3 | 90 | 5.3 |
| GSC-16 | 27 | 3 | 90 | 5.5 |
| GSC-17 | 30 | 3 | 90 | 6.0 |
| GSC-18 | 32 | 3 | 90 | 6.2 |
| GSC-19 | 40 | 4 | 90 | 8.0 |
| GSC-20 | 44 | 4 | 90 | 8.2 |
| GSC-22 | 58 | 4 | 90 | 8.0 |
| GSC-24 | 68 | 6 | 100 | 8.0 |
| GSC-25 | 75 | 6 | 100 | 10.0 |
| GSC-28 | 90 | 6 | 100 | 9.2 |
| GSC-30 | 100 | 7 | 100 | 12 |
| GSC-32 | 120 | 7 | 100 | 10 |
| GSC-35 | 160 | 9 | 100 | 17 |
| GSC-36 | 169 | 11 | 100 | 19 |
| GCS-38 | 230 | 10 | 100 | 20 |
| GSC-40 | 230 | 11 | 100 | 23 |
| GSC-42 | 260 | 12 | 100 | 28 |
| GSC-45 | 390 | 17 | 100 | 42 |
| GSC-48 | 430 | 18 | 100 | 45 |
| GSC-50 | 470 | 19 | 110 | 46 |
| GSC-55 | 580 | 21 | 110 | 50 |
| GSC-56 | 790 | 25 | 110 | 67 |
| GSC-60 | 840 | 28 | 110 | 70 |
| GSC-65 | 1000 | 30 | 100 | 77 |
| GSC-70 | 1300 | 38 | 100 | 102 |
| GSC-71 | 1400 | 39 | 100 | 114 |
| GSC-75 | 1500 | 41 | 100 | 110 |
| GSC-80 | 2100 | 54 | 100 | 175 |
| GSC-90 | 2700 | 61 | 100 | 210 |
| GSC-100 | 4200 | 84 | 100 | 360 |
| GSC-110 | 5150 | 93.6 | 120 | 380 |
| GSC-120 | 6050 | 101 | 120 | 420 |
| GSC-130 | 9600 | 148 | 120 | 800 |
| GSC-140 | 11000 | 159 | 120 | 860 |
| GSC-150 | 12900 | 172 | 120 | 920 |
| GSC-160 | 14600 | 183 | 120 | 960 |
| GSC-170 | 19500 | 229 | 120 | 1450 |
| GSC-180 | 21300 | 236 | 120 | 1500 |
| GSC-190 | 24200 | 255 | 120 | 1600 |
| GSC-200 | 31000 | 310 | 120 | 2200 |
| unit:mm |

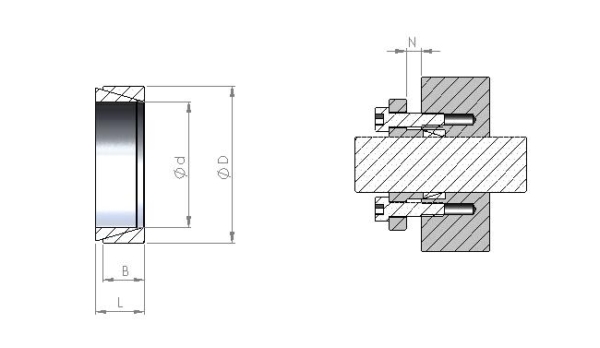

| 產品編號 | d(mm) | D(mm) | L(mm) | B(mm) | N1(mm) | N2(mm) | N3(mm) | N4(mm) |
| GSC-06 | 6 | 9 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-08 | 8 | 11 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-10 | 10 | 13 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-11 | 11 | 14 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-12 | 12 | 15 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-13 | 13 | 16 | 4.5 | 3.7 | 2.5 | 2.5 | 3 | 4 |
| GSC-14 | 14 | 18 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-15 | 15 | 19 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-16 | 16 | 20 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-17 | 17 | 21 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-18 | 18 | 22 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-19 | 19 | 24 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-20 | 20 | 25 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-22 | 22 | 26 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-24 | 24 | 28 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-25 | 25 | 30 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-28 | 28 | 32 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-30 | 30 | 35 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-32 | 32 | 36 | 6.3 | 5.3 | 3 | 4 | 4 | 5 |
| GSC-35 | 35 | 40 | 7 | 6 | 3 | 4 | 4 | 5 |
| GSC-36 | 36 | 42 | 7 | 6 | 3 | 4 | 4 | 5 |
| GCS-38 | 38 | 44 | 7 | 6 | 4 | 5 | 5 | 6 |
| GSC-40 | 40 | 45 | 8 | 6.6 | 4 | 5 | 5 | 6 |
| GSC-42 | 42 | 48 | 8 | 6.6 | 4 | 5 | 5 | 6 |
| GSC-45 | 45 | 52 | 10 | 8.6 | 4 | 5 | 5 | 6 |
| GSC-48 | 48 | 55 | 10 | 8.6 | 4 | 5 | 5 | 6 |
| GSC-50 | 50 | 57 | 10 | 8.6 | 4 | 5 | 5 | 6 |
| GSC-55 | 55 | 62 | 10 | 10.4 | 4 | 5 | 5 | 6 |
| GSC-56 | 56 | 64 | 12 | 10.4 | 4 | 5 | 6 | 7 |
| GSC-60 | 60 | 68 | 12 | 10.4 | 4 | 5 | 6 | 7 |
| GSC-65 | 65 | 73 | 12 | 10.4 | 4 | 5 | 6 | 7 |
| GSC-70 | 70 | 79 | 14 | 12.2 | 4 | 5 | 6 | 7 |
| GSC-71 | 71 | 80 | 14 | 12.2 | 4 | 5 | 6 | 7 |
| GSC-75 | 75 | 84 | 14 | 12.2 | 4 | 5 | 6 | 7 |
| GSC-80 | 80 | 91 | 17 | 15 | 5 | 6 | 7 | 8 |
| GSC-90 | 90 | 101 | 17 | 15 | 5 | 6 | 7 | 8 |
| GSC-100 | 100 | 114 | 21 | 18.7 | 5 | 6 | 8 | 9 |
| GSC-110 | 110 | 124 | 21 | 18.7 | 5 | 6 | 8 | 9 |
| GSC-120 | 120 | 134 | 21 | 18.7 | 5 | 6 | 8 | 9 |
| GSC-130 | 130 | 148 | 28 | 25.3 | 5 | 6 | 8 | 9 |
| GSC-140 | 140 | 158 | 28 | 25.3 | 6 | 7 | 9 | 11 |
| GSC-150 | 150 | 168 | 28 | 25.3 | 6 | 7 | 9 | 11 |
| GSC-160 | 160 | 178 | 28 | 25.3 | 6 | 7 | 9 | 11 |
| GSC-170 | 170 | 191 | 33 | 30 | 7 | 9 | 11 | 13 |
| GSC-180 | 180 | 201 | 33 | 30 | 7 | 9 | 11 | 13 |
| GSC-190 | 190 | 211 | 33 | 30 | 7 | 9 | 11 | 13 |
| GSC-200 | 200 | 224 | 38 | 34.8 | 7 | 9 | 11 | 13 |
