Features:
- One-piece metallic spring coupling.
- Extremely high torsional stiffness, low inertia and excellent response.
- Absorption of parallel, angular misalignments and shaft endplay by spring action.
- Identical clockwise and counter-clockwise rotational characteristics.
- Finished products featuring two different end bore diameters available in stock.
- Setscrew type.
- MFX Body : Extra Super Duralumin. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Error of Shaft End-Play(mm) | Mass**(g) |
| MFX-16 | 0.5 | 1.0 | 39000 | 2.8 x 10-7 | 0.05 | 0.5° | ±0.1 | 7.0 |
| MFX-19 | 1.0 | 2.0 | 33000 | 6.2 x 10-7 | 0.05 | 0.5° | ±0.1 | 11.0 |
| MFX-24 | 1.5 | 3.0 | 26000 | 2.0 x 10-6 | 0.05 | 0.5° | ±0.1 | 23.0 |
| MFX-29 | 2.0 | 4.0 | 21000 | 5.2 x 10-6 | 0.05 | 0.5° | ±0.1 | 40.0 |
| MFX-34 | 3.0 | 6.0 | 18000 | 1.1 x 10-5 | 0.05 | 0.5° | ±0.1 | 62.0 |
| MFX-39 | 6.0 | 12.0 | 16000 | 2.2 x 10-5 | 0.05 | 0.5° | ±0.1 | 93.0 |
| MFX-44 | 9.0 | 18.0 | 14000 | 4.1 x 10-5 | 0.05 | 0.5° | ±0.1 | 137.0 |

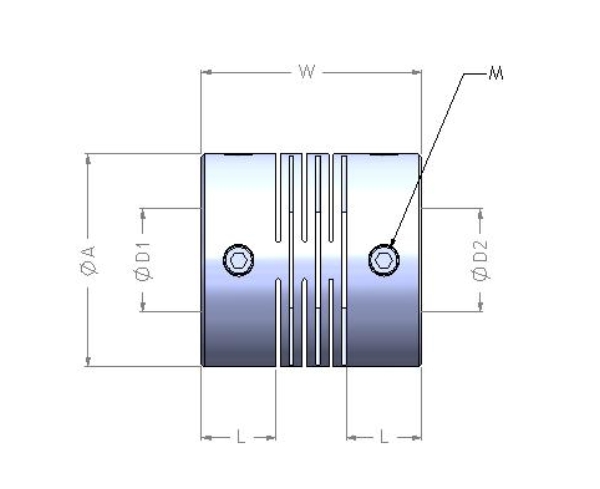

| Unit:mm |
| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| MFX-16 | 16 | 6 | 17.4 | 4 | 8 | 4-M3 |
| MFX-19 | 19 | 6.8 | 20 | 5 | 10 | 4-M3 |
| MFX-24 | 24 | 8.5 | 25 | 5 | 12 | 4-M4 |
| MFX-29 | 29 | 10.2 | 30 | 6 | 14 | 4-M4 |
| MFX-34 | 34 | 12 | 35 | 8 | 18 | 4-M5 |
| MFX-39 | 39 | 13.5 | 40 | 10 | 20 | 4-M5 |
| MFX-44 | 44 | 15.5 | 45 | 12 | 22 | 4-M6 |
