Features: - Slippage of hub and spacer enables high allowable eccentricity and angularity.
- Minimized load on shaft caused by misalignments.
- High torsion stiffness and excellent response.
- Simple configuration enables easy assembly.
- Maintenance-free excellent resistance to oil and electrical insulation.
- Operational temperature：-20℃〜80℃.
- Finished products featuring two different end bore diameters available in stock.
- Setscrew type.
- MFL Body : Aluminum alloy. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Mass**(g) |
| MFL-16 | 0.7 | 1.4 | 9500 | 3.0 x 10-7 | 1.0 | 3° | 6.5 |
| MFL-20 | 1.2 | 2.4 | 7600 | 1.1 x 10-6 | 1.5 | 3° | 14.0 |
| MFL-25 | 2.0 | 4.0 | 6100 | 2.7 x 10-6 | 2.0 | 3° | 27.0 |
| MFL-32 | 4.5 | 9.0 | 4800 | 9.0 x 10-6 | 2.5 | 3° | 45.0 |
| MFL-40 | 9.0 | 18.0 | 3800 | 2.2 x 10-5 | 3.0 | 3° | 80.0 |
| MFL-50 | 18.0 | 36.0 | 3100 | 6.3 x 10-4 | 3.5 | 3° | 150.0 |
| Unit:mm |

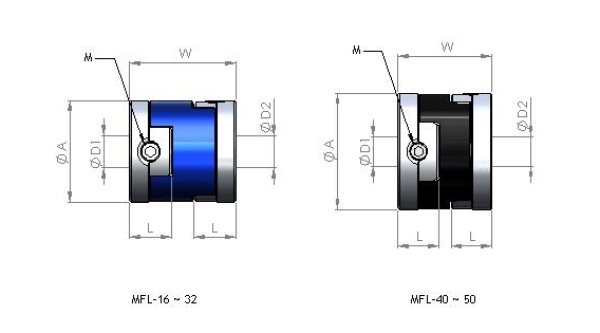

| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| MFL-16 | 16 | 7 | 18 | 4 | 6 | 2-M3 |
| MFL-20 | 20 | 9 | 23 | 4 | 8 | 2-M4 |
| MFL-25 | 25 | 11 | 28 | 5 | 10 | 2-M5 |
| MFL-32 | 32 | 13 | 33 | 6 | 14 | 2-M6 |
| MFL-40 | 40 | 14 | 32 | 10 | 16 | 2-M6 |
| MFL-50 | 50 | 17 | 38 | 12 | 20 | 2-M8 |
