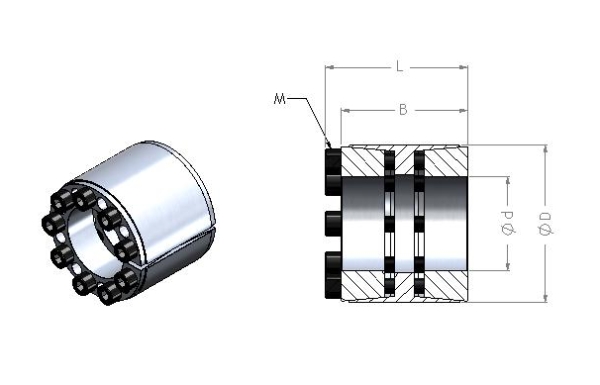

CLAMPING POWER LOCKSGSF

Features:

- Self-centering.

- High torsion stiffness and response.

- Clamping element for universal use.

- Wide range of applications.

- Low-cost solution to high torques in average.

- Please see our mounting instructions the internet.

- GSF Body：AISI 1045 Alloy.

unit:mm

Product No	Drive Torque Screw TS (N.m)	Transmissible Torque T (N.m)	Thrust Force F (KN)	Contact Pressure on Hub Surface P (N/m㎡)	Weight kg
GSF-25	17	900	70	90	0.42
GSF-28	17	940	70	90	0.44
GSF-30	17	1100	70	90	0.48
GSF-32	17	1300	70	110	0.47
GSF-35	17	1600	90	110	0.52
GSF-38	17	2400	90	110	0.61
GSF-40	17	2400	120	110	0.60
GSF-42	41	3300	150	140	0.59
GSF-45	41	3300	150	140	0.85
GSF-48	41	4200	160	130	1.30
GSF-50	41	4200	160	130	1.20
GSF-55	41	4800	170	120	1.35
GSF-60	41	6200	200	120	1.40
GSF-65	41	6900	210	130	1.55
GSF-70	85	11500	330	130	2.90
GSF-75	85	12500	330	130	3.10
GSF-80	85	14500	360	130	3.25
GSF-85	85	15500	400	130	3.45
GSF-90	85	18100	400	130	3.60
GSF-95	85	19500	400	130	3.85
GSF-100	150	26500	500	130	5.70
GSF-110	150	31000	600	110	6.30
GSF-120	150	40000	660	120	7.00
GSF-130	230	53000	800	130	9.80
GSF-140	230	64000	900	110	10.40
GSF-150	230	74000	1000	110	11.10
GSF-160	230	84000	1050	110	11.50
GSF-170	230	108000	1300	120	17.80
GSF-180	230	121000	1300	120	18.40
GSF-190	230	133000	1400	130	23.00
GSF-200	230	144000	1400	130	27.00

unit:mm
